Specialist in Printing, packaging, Finishing Binding & Converting Machines
with European Technology for METALISED POLYESTER FILM, HOT KNIFE CUTTING system and with electro magnetic heating system at speed of 100 meters/minute and accuracy of +/- 1 mm
Advantage :
| Technical Specification | |
|---|---|

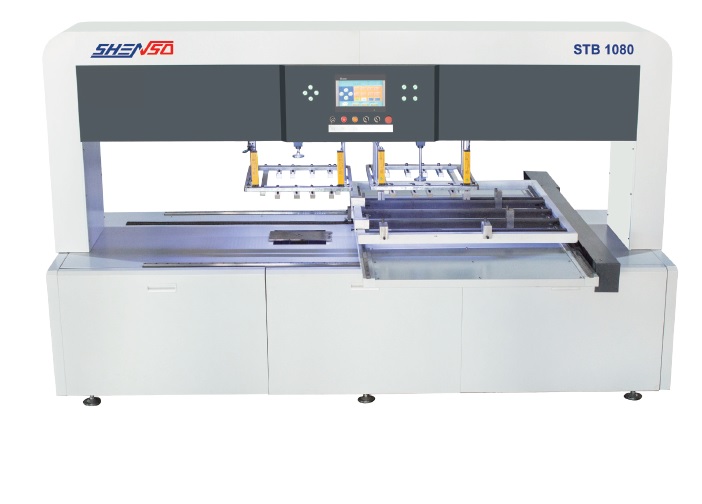

| Model | STB 1080 |
| Max. paper Size | 1080*950mm |
| Min. paper Size | 300*300mm |
| Max stripping product | 480*480mm |
| Min. stripping product | 30*30mm |
| Machine speed | 416 Mm per second 10000 pieces per hour depends on the kinds of paper |
| Total power | 6.8kw |
| Max working pressure | 3.85t |
| Air pressure | 0.8mpa |
| Weight | 2.1t |
| Oversize | 3396*1960*1957mm |
| Technical Specification | |||
|---|---|---|---|
| Model | SGS-780 | SGS-920 | SGS-1080 |
| Max sheet size(Mm) | 780x540 | 920x650 | 1080x780 |
| Min sheet size(Mm) | 550x280 | 550x280 | 600x400（457x292 |
| Max pile height(Mm) | 100 | 100 | 100 |
| Min pile height(Mm) | 40 | 40 | 40 |
| Bench height(Mm) | 850 | 850 | 850 |
| Max stripping size(Mm) | 360x360 | 360x360 | 360x360 |
| Min stripping size(Mm) | 30x30 | 30x30 | 30x30 |
| Stripping speed(Times/Min) | 25 | 25 | 25 |
| Max pressure(Bar) | 80 Bar | 80 Bar | 90 Bar |
| Volatge | 380v/50hz/3ph | 380v/50hz/3ph | 380v/50hz/3ph |
| Power /Currency | 3.75kw/10a | 3.75kw/10a | 3.75kw/10a |
| Air comsumption | 2l/Min | 2l/Min | 2l/Min |
| Air compression | 4-7bar | 4-7bar | 4-7bar |
| Machine weight(Kg) | 1400 | 1600 | 1800 |
| Machine dimension(Mm) | 2450x1400x1900 | 2700x1560x1900 | 3050x1800x1900 |

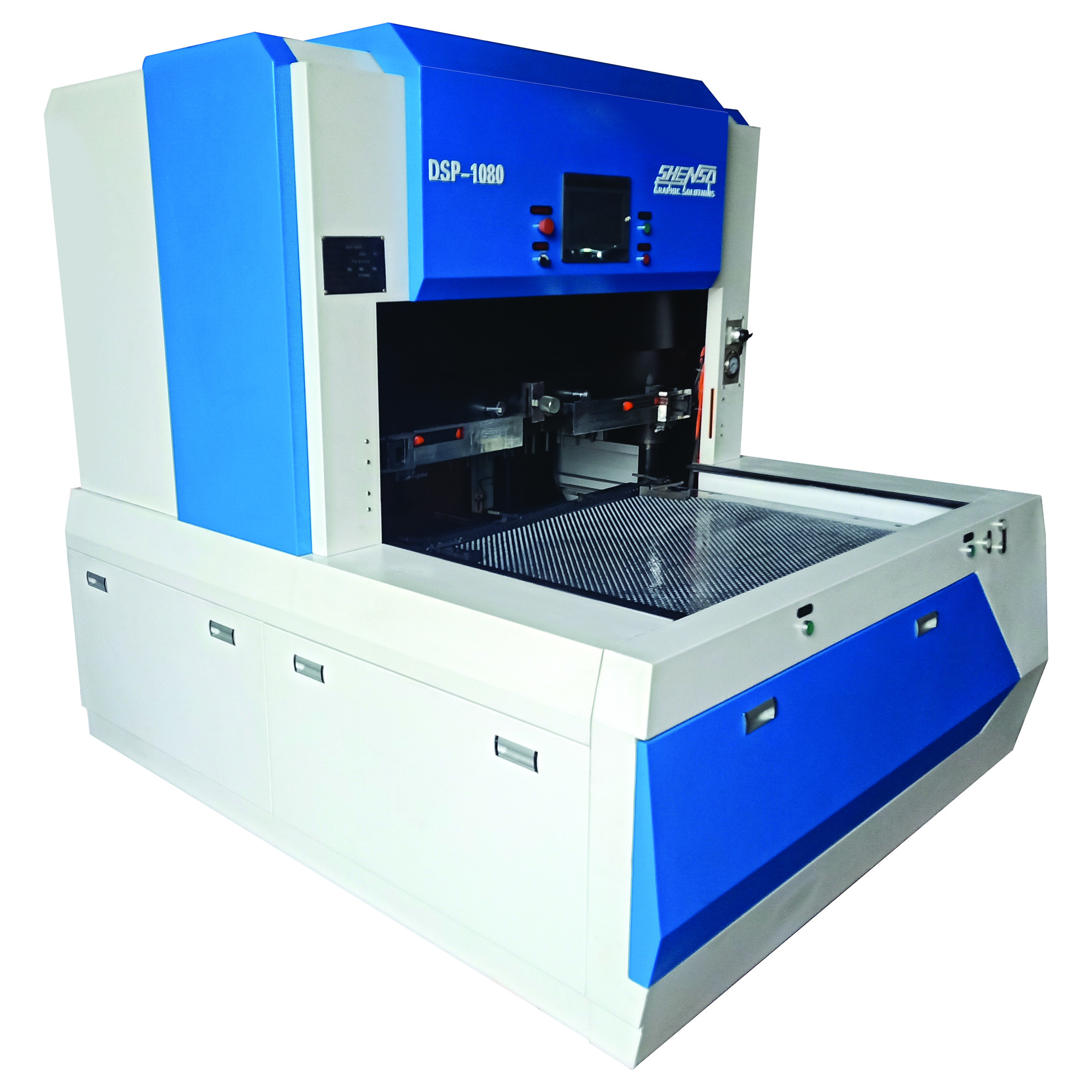

Dsp -780/920/1080 automatic stripping machine belongs to post printing machine, post processing of paper creasing and die cutting. As a professional equipment, mainly used all kind of cardboard, trademark (tag), plastic film and other small packages automatically remove the edge and take out complete paper products, goods partner of the semi-automatic die cutting machine and roll paper flat die cutting machine. It is suitable for printing, packaging decoration and plastic industries in production.
Features:
| Technical Specification | ||
|---|---|---|
| Model | DSP 780 | DSP 1080 |
| Max. sheet size（Mm） | 780*540 | 1080*780 |
| Max. stripping size（Mm） | 360*360 | 360*360 |
| Min. sheet size（Mm） | 550*430 | 1080*780 |
| Min. stripping size（Mm） | 30*30 | 30*30 |
| Max. pile height（Mm） | 60 | 60 |
| Min. pile height（Mm） | 30 | 30 |
| Bench height（Mm） | 850 | 850 |
| Stripping speed（Times/Min） | 5 | 5 |
| Max. pressure（Bar） | 100 | 100 |
| Machine dimension（Mm） | 1700*1600*1750 | 1900*2250*1750 |
| Machine weight（Kg） | 2500 | 3200 |
| Max. consumption power（Kw） | 10 | 10 |
The ROGLER developers team operates with most effective, upto- date programming tools. Microsoft SQL Server is a powerful, high capacity, easy-to-handle standard database, which is constantly maintained and improved by the manufacturer. The entire Microsoft world is accessible and easy-to-use in combination with ROGLER Software Suite. That means investment security for our customers.
Sheet-fed printing quality inspection such as pharmaceutical cartons and tobacco boxes. It is able to inspect defects like streak, missing print, dirty spot, splash, mis-registration, colour deviation, miss stamping, improper position of stamping, concave-convex and foil stamping deficiency. The function of variable data inspection enables it to read codes, analyse code level and inspect other code defects.
Specially developed for ink-jet printing quality inspection of small sheet packets. It is able to inspect variable or immutable information of 2D code, numbers, English letter and simple graphics. The machine is equipped with Sheet-feeding Module, Surface Finishing Module, Position Adjustment Module, Printing Module, Inspection Module, Double Elimination Module, Sheet Collection Module etc. In the speed of 80m/min-90m/min, it can produce 20,000-30,000 packets per hour. ¬For inspection alone, it can reach 150m/min and finish 40,000-60,000 packets per hour ROGLER MIS/ERP SOFTWARE Rogler is one of those typical German / Austrian owner-operated international Innovators who help their clients to focus on their strength as our product offering are highly customizable and our services are highly adaptable to local needs and customer preferences. Our systems not only cover already all steps in the value chain of modern production (not only printing) companies and aspects of workflow and enterprise resource management company sizes. -Which altogether makes us one of the rare examples in an international context. As mentioned in the presentation, another concrete Rogler USP lies furthermore in the superior customization ability to satisfy individual and current demands as well as in the support readiness for evolving (future) needs
